Apa itu Processor Intel Core i3? Penjelasan Dasar CPU Intel

1. Intel Core i3-10105F Processor 6M Cache, up to 4.40 GHz
Essentials
Product Collection : 10th Generation Intel® Core™ i3 Processors
Code Name : Products formerly Comet Lake
Vertical Segment : Desktop
Processor Number : i3-10105F
Lithography : 14 nm
Recommended Customer Price : $107.00-$117.00
Use Conditions : PC/Client/Tablet

CPU Specifications
Total Cores : 4
Total Threads : 8
Max Turbo Frequency : 4.40 GHz
Intel® Turbo Boost Technology 2.0 Frequency‡ : 4.40 GHz
Processor Base Frequency : 3.70 GHz
Cache : 6 MB Intel® Smart Cache
Bus Speed : 8 GT/s
TDP : 65 W

Supplemental Information
Marketing Status : Launched
Launch Date : Q1’21
Embedded Options Available : No
Datasheet : View now

Memory Specifications
Max Memory Size (dependent on memory type) : 128 GB
Memory Types : DDR4-2666
Max # of Memory Channels : 2
Max Memory Bandwidth : 41.6 GB/s
ECC Memory Supported ‡ : No

Expansion Options
Scalability : 1S Only
PCI Express Revision : 3.0
PCI Express Configurations ‡ : Up to 1×16, 2×8, 1×8+2×4
Max # of PCI Express Lanes : 16

Package Specifications
Sockets Supported : FCLGA1200
Max CPU Configuration : 1
Thermal Solution Specification : PCG 2015C
Tjunction : 100°C
Package Size : 37.5mm x 37.5mm

Advanced Technologies
Intel® Optane™ Memory Supported ‡ : Yes
Intel® Thermal Velocity Boost : No
Intel® Turbo Boost Max Technology 3.0 ‡ : No
Intel® Turbo Boost Technology ‡ : 2.0
Intel® Hyper-Threading Technology ‡ : Yes
Intel® Transactional Synchronization Extensions : No
Intel® 64 ‡ : Yes
Instruction Set : 64-bit
Instruction Set Extensions : Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Idle States : Yes
Enhanced Intel SpeedStep® Technology : Yes
Thermal Monitoring Technologies : Yes
Intel® Identity Protection Technology ‡ : Yes

Security & Reliability
Intel® AES New Instructions : Yes
Secure Key : Yes
Intel® Software Guard Extensions (Intel® SGX) : Yes with Intel® ME
Intel® OS Guard : Yes
Intel® Trusted Execution Technology ‡ : No
Execute Disable Bit ‡ : Yes
Intel® Boot Guard : Yes
Intel® Stable IT Platform Program (SIPP) : No
Intel® Virtualization Technology (VT-x) ‡ : Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ : Yes
Intel® VT-x with Extended Page Tables (EPT) ‡ : Yes

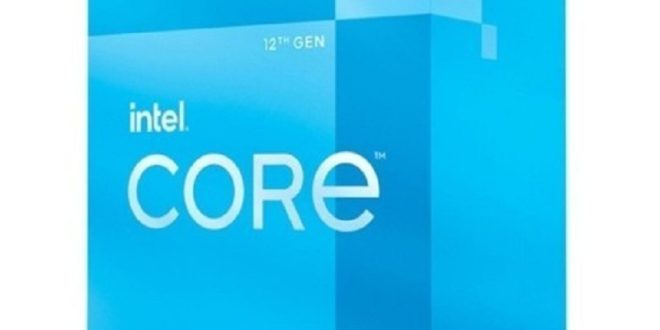

2. Intel Core i3-12100 Processor 12M Cache, up to 4.30 GHz
Essentials
Product Collection : 12th Generation Intel® Core™ i3 Processors
Code Name : Products formerly Alder Lake
Vertical Segment : Desktop
Processor Number : i3-12100
Lithography : Intel 7
Recommended Customer Price : $134.00-$144.00
Use Conditions : PC/Client/Tablet

CPU Specifications
Total Cores : 4
# of Performance-cores : 4
# of Efficient-cores : 0
Total Threads : 8
Max Turbo Frequency : 4.30 GHz
Performance-core Max Turbo Frequency : 4.30 GHz
Performance-core Base Frequency : 3.30 GHz
Cache : 12 MB Intel® Smart Cache
Total L2 Cache : 5 MB
Processor Base Power : 60 W
Maximum Turbo Power : 89 W

Supplemental Information
Marketing Status : Launched
Launch Date : Q1’22
Embedded Options Available : Yes
Datasheet : View now

Memory Specifications
Max Memory Size (dependent on memory type) : 128 GB
Memory Types :
Up to DDR5 4800 MT/s
Up to DDR4 3200 MT/s
Max # of Memory Channels : 2
Max Memory Bandwidth : 76.8 GB/s

GPU Specifications
GPU Name‡ : Intel® UHD Graphics 730
Graphics Base Frequency : 300 MHz
Graphics Max Dynamic Frequency : 1.40 GHz
Graphics Output : eDP 1.4b, DP 1.4a, HDMI 2.1
Execution Units : 24
Max Resolution (HDMI)‡ : 4096 x 2160 @ 60Hz
Max Resolution (DP)‡ : 7680 x 4320 @ 60Hz
Max Resolution (eDP – Integrated Flat Panel)‡ : 5120 x 3200 @ 120Hz
DirectX* Support : 12
OpenGL* Support : 4.5
OpenCL* Support : 3.0
Multi-Format Codec Engines : 1
Intel® Quick Sync Video : Yes
Intel® Clear Video HD Technology : Yes
# of Displays Supported ‡ : 4
Device ID : 0x4692

Expansion Options
Direct Media Interface (DMI) Revision : 4.0
Max # of DMI Lanes : 8
Scalability : 1S Only
PCI Express Revision : 5.0 and 4.0
PCI Express Configurations ‡ : Up to 1×16+4, 2×8+4
Max # of PCI Express Lanes : 20

Package Specifications
Sockets Supported : FCLGA1700
Max CPU Configuration : 1
Thermal Solution Specification : PCG 2020C
Tjunction : 100°C
Package Size : 45.0 mm x 37.5 mm
Max Operating Temperature : 100 °C

Advanced Technologies
Intel® Gaussian & Neural Accelerator : 3.0
Intel® Thread Director : No
Intel® Deep Learning Boost (Intel® DL Boost) on CPU : Yes
Intel® Optane™ Memory Supported ‡ : Yes
Intel® Speed Shift Technology : Yes
Intel® Turbo Boost Max Technology 3.0 ‡ : No
Intel® Turbo Boost Technology ‡ : 2.0
Intel® Hyper-Threading Technology ‡ : Yes
Intel® 64 ‡ : Yes
Instruction Set : 64-bit
Instruction Set Extensions : Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Idle States : Yes
Enhanced Intel SpeedStep® Technology : Yes
Thermal Monitoring Technologies : Yes
Intel® Volume Management Device (VMD) : Yes

Security & Reliability
Intel® Threat Detection Technology (TDT) : Yes
Intel® Standard Manageability (ISM) ‡ : Yes
Intel® Control-Flow Enforcement Technology : Yes
Intel® AES New Instructions : Yes
Secure Key : Yes
Intel® OS Guard : Yes
Execute Disable Bit ‡ : Yes
Intel® Boot Guard : Yes
Mode-based Execute Control (MBEC) : Yes
Intel® Virtualization Technology (VT-x) ‡ : Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ : Yes
Intel® VT-x with Extended Page Tables (EPT) ‡ : Yes
